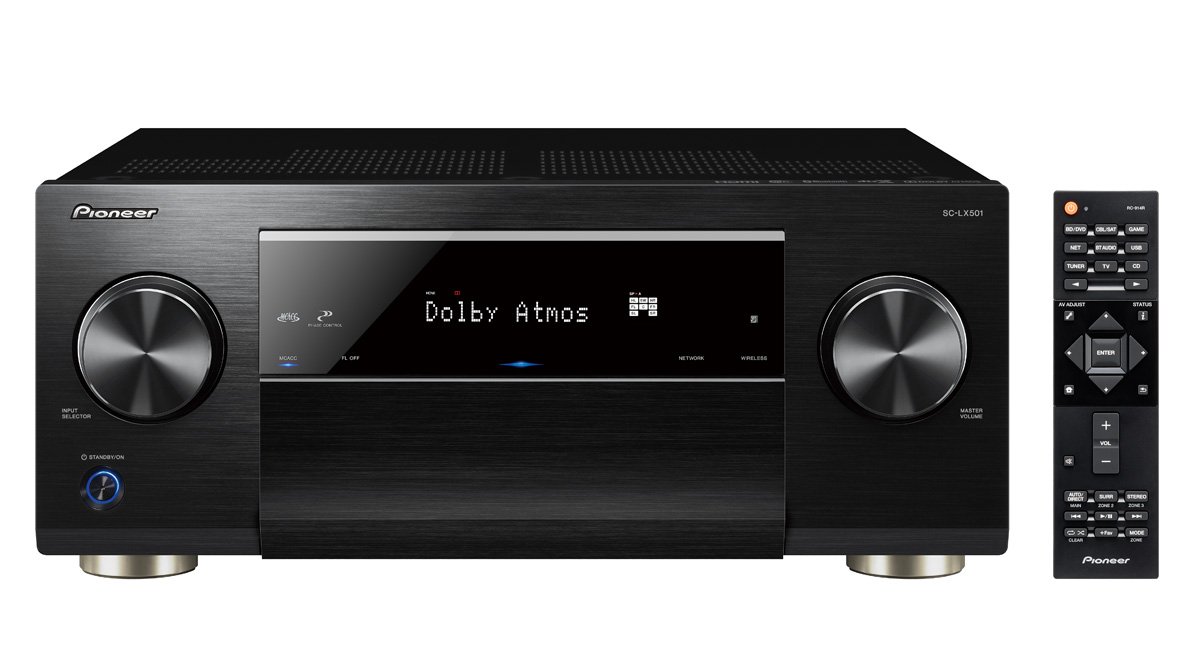

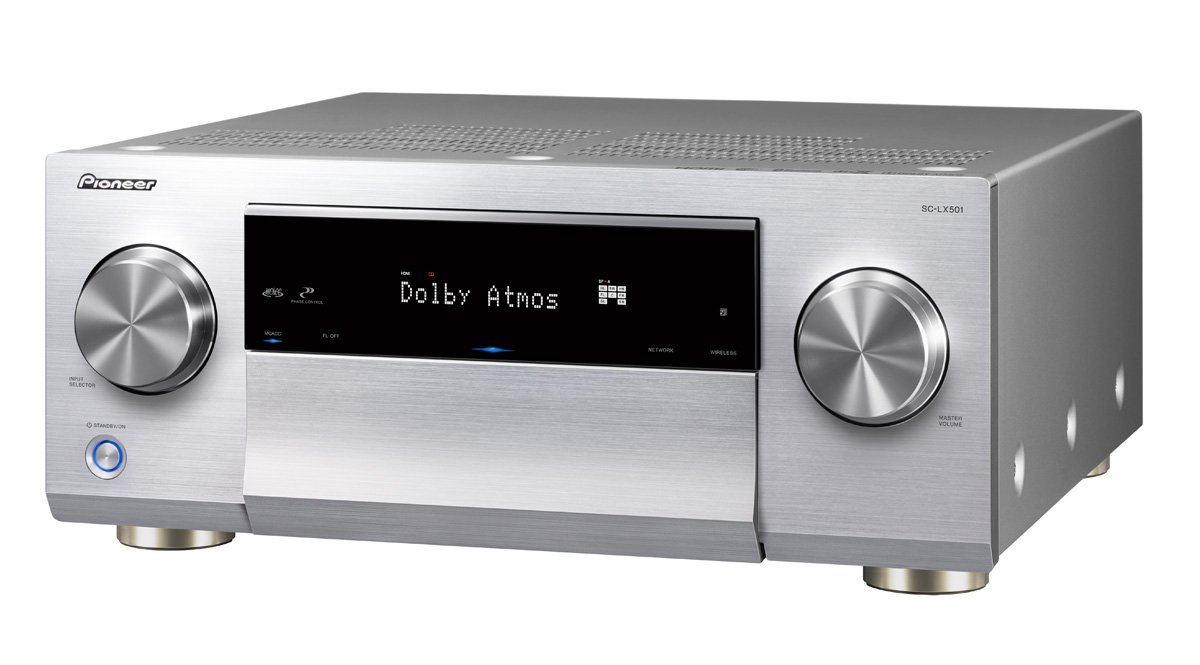

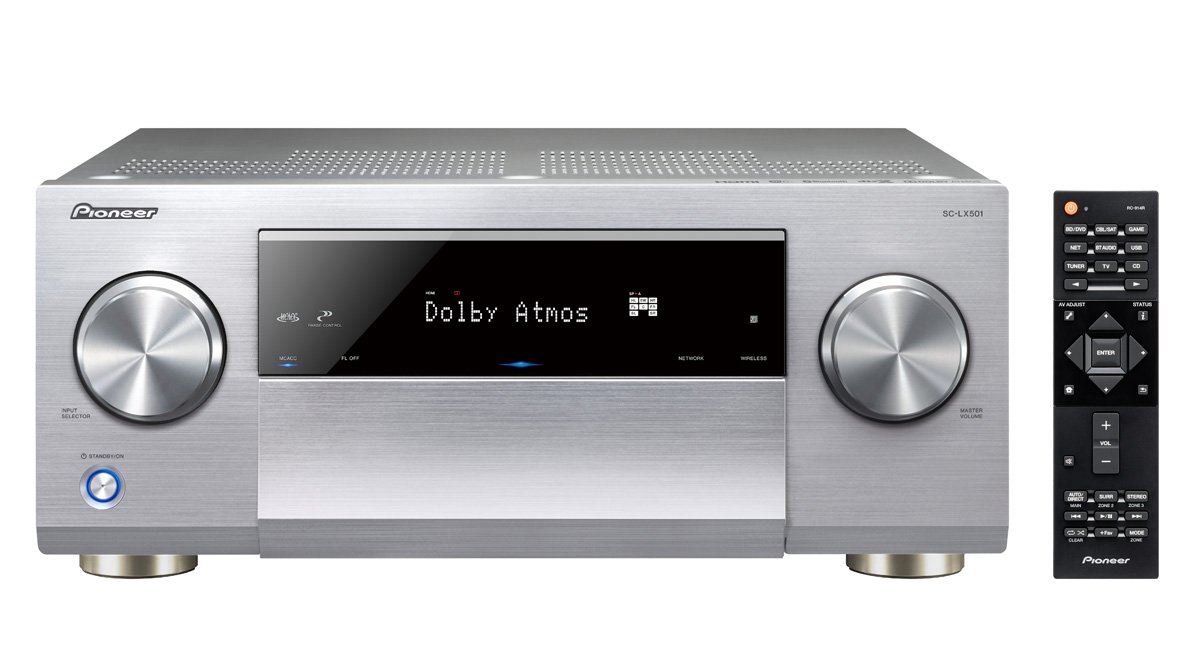

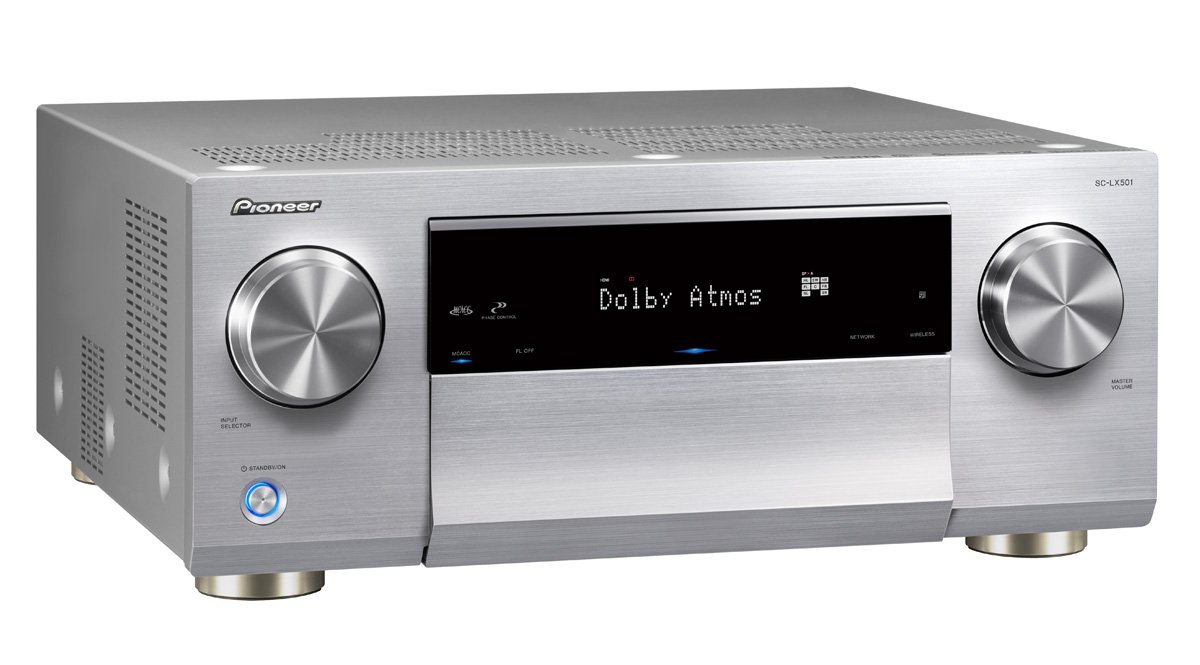

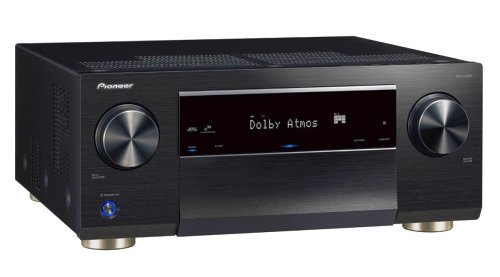

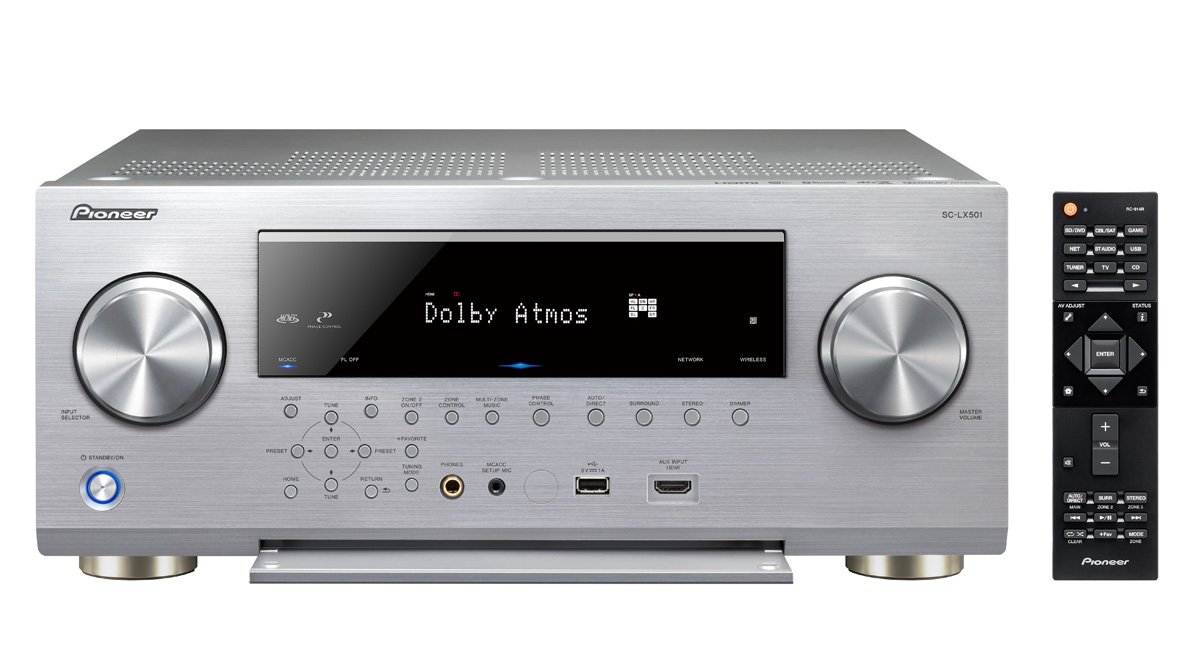

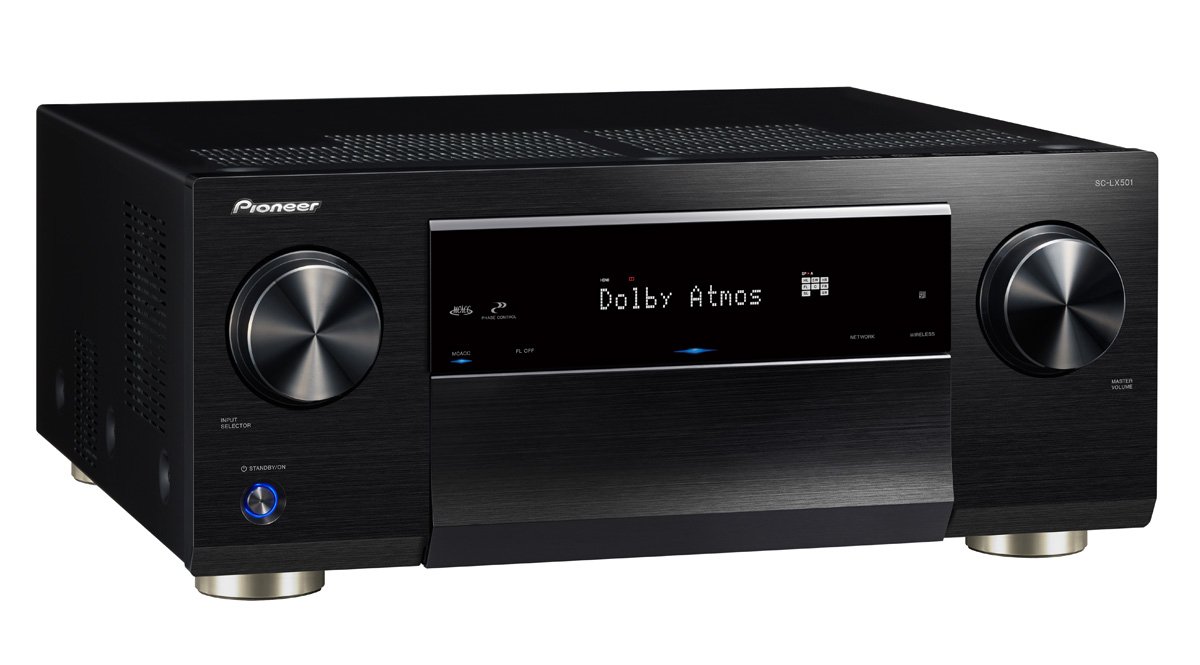

The SC-LX501 featuring 7.2-ch Class D amplifier is fully-equipped for the latest multi-dimensional surround
sound formats, DTS:X™ and Dolby Atmos®, featuring the Reflex Optimizer for Dolby enabled speakers. With
Ultra HD (4K/60p/4:4:4) upscaling/passthrough and HDR/BT.2020 standards ready, images are ever more
impressive. In addition to internet radio and various network streaming services, with Google Cast™ built-in you
can use your mobile device to cast your favourite music to your receiver. The multizone feature supports
powered ZONE 2 output.
AUDIO FEATURES
● Channels: 7 ● Amplification Type: Class D (Direct Energy HD) - 560 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)- 270 W/ch (4 ohms, 1 kHz, 1ch Driven IEC)- 160 W/ch (8 ohms, 1 kHz, 1ch Driven IEC)● Fan-less Cooler Design ● Anti-Standing Wave Insulator ● Dolby Atmos®/Dolby Surround ● DTS:X /DTS Neural:X ● Reflex Optimizer ● Dolby® TrueHD/Dolby Digital Plus ● DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-ES/DTS-HD Express ● DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch) ● DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch) ● Digital Core Engine with Cirrus Logic (Quad Core) 384 kHz/32-bit DAC (AK4458) ● HDMI Audio Return Channel (ARC) ● MCACC Auto Room Tuning - Phase Control- Subwoofer EQ (4 Band)● Advanced Sound Retriever (2ch) ● Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround● AM/FM Tuner 40 Presets
VIDEO FEATURES
● Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit) ● HDR and BT.2020 Support ● Ultra HD Upscaling (1080p 4K) ● 3D Ready (Blu-ray Disc™, Broadcast, and Games) ● Deep Colour (36-bit), “x.v.Colour”
NETWORK FEATURES

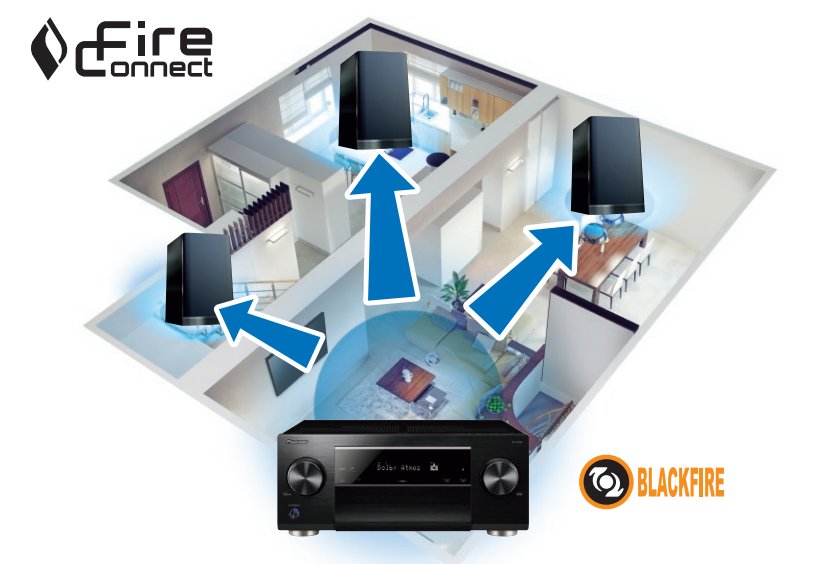

● FireConnect™ for Multi-room Audio ● Google Cast ● Apple AirPlay Certified ● Spotify® Digital Music-Streaming Service Ready ● Internet Radio with TuneIn ● TIDAL Music Streaming Service Ready ● Deezer ● Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV- 11.2/5.6/2.8 MHz DSD Playback- Dolby® TrueHD Playback (USB only)● Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz) ● Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
OPERATING FEATURES
● iControlAV5 Remote Control App Ready (iOS/Android) ● New GUI with System/Network Setup Menu ● Auto Power Off in HDMI Standby Through ● Sleep Timer ● User-Friendly Simple Remote Control
CONNECTIONS

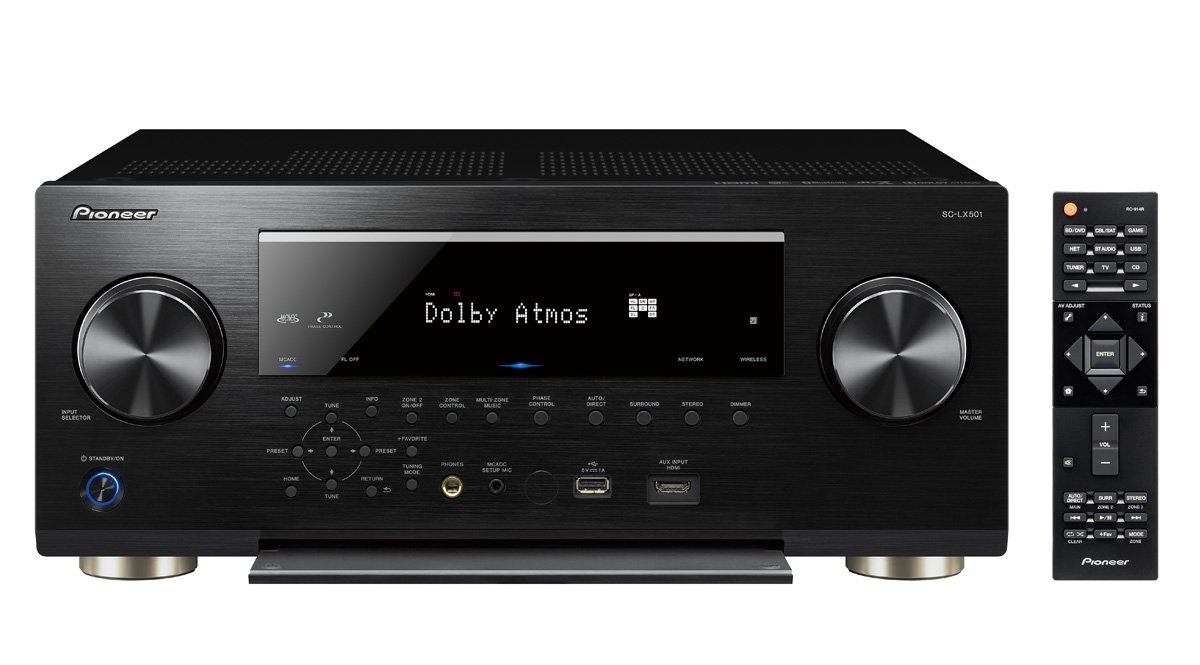

● Front Terminals - HDMI 1 In- USB 1 In for USB Drive- MCACC Setup MIC In- Phones 1 Out

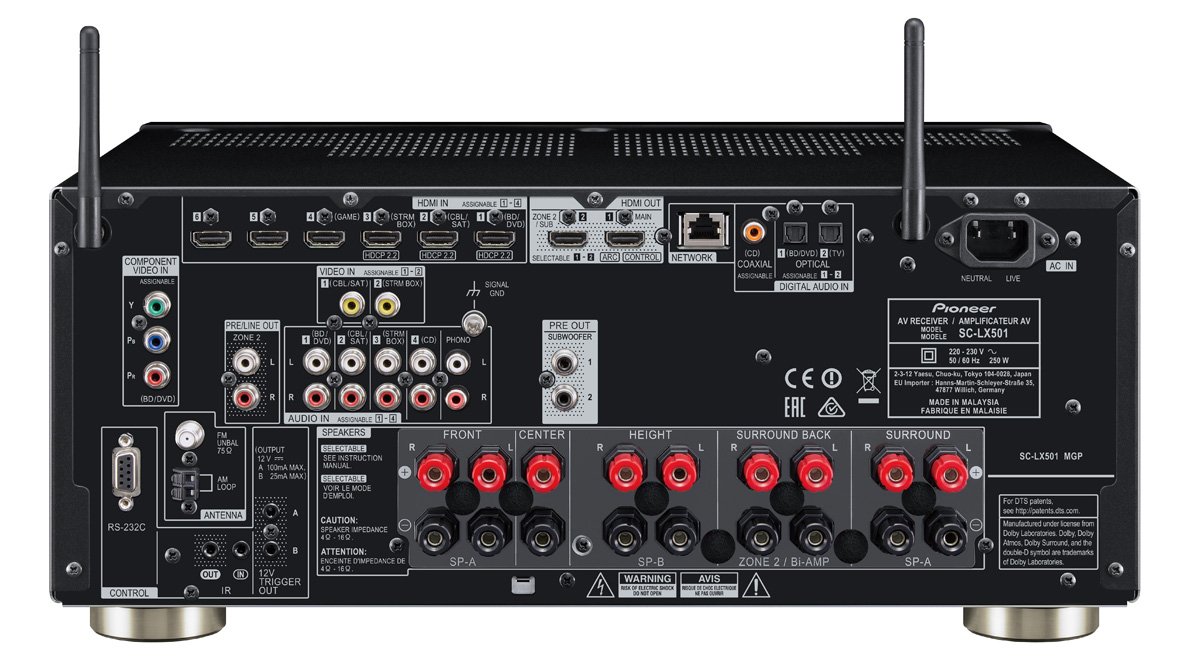

● Rear Terminals - HDMI 6 In (4 Assignable)- HDMI 2 Out (1 for MAIN, 1 for SUB)- Ethernet 1 In- AV (Component) 1 In (Assignable)- AV (Composite) 2 In (Assignable)- Audio 1 In (Assignable)- Phono (MM) 1 In- Digital Coaxial 1 In (Assignable)- Digital Optical 2 In (Assignable)- Subwoofer 2 Pre Out- Zone 2 Pre/Line Out- Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2/Bi-AMP, HEIGHT/SP B)- IR 1 In/1 Out- 12 V Trigger 2 Out/RS-232C- FM/AM Antenna
|
